49131 | Gabriel

Air Adjustable Shock Absorbers

America's best-known air-adjustable shock absorbers
Fully-adjustable air shocks help you maintain proper ride height
Can help improve handling and reduce risk of bottoming out Up to 1,100 pounds of leveling capacity per pair (not to exceed GVWR)
Custom-sized for a direct and simple installation and fit
Easy to inflate at any service station, at home with an air compressor or with continued use of an existing onboard air management system
Air pressure of 25 min – 200 max psi
Sold in pairs and includes Gabriel Air Hose Kit when applicable – Air Hose Kit can also be purchased separately
Chrome-plated piston rod construction and deluxe wiper seals provide optimum sealing
Ideal for temporarily towing boats and trailers or heavy loads

Upper Mount Code	BP31
Accessory Kit #	n/a
Lower Mount Code	EB1
Weight (lbs)	11.70
Dust Tube Material	Steel

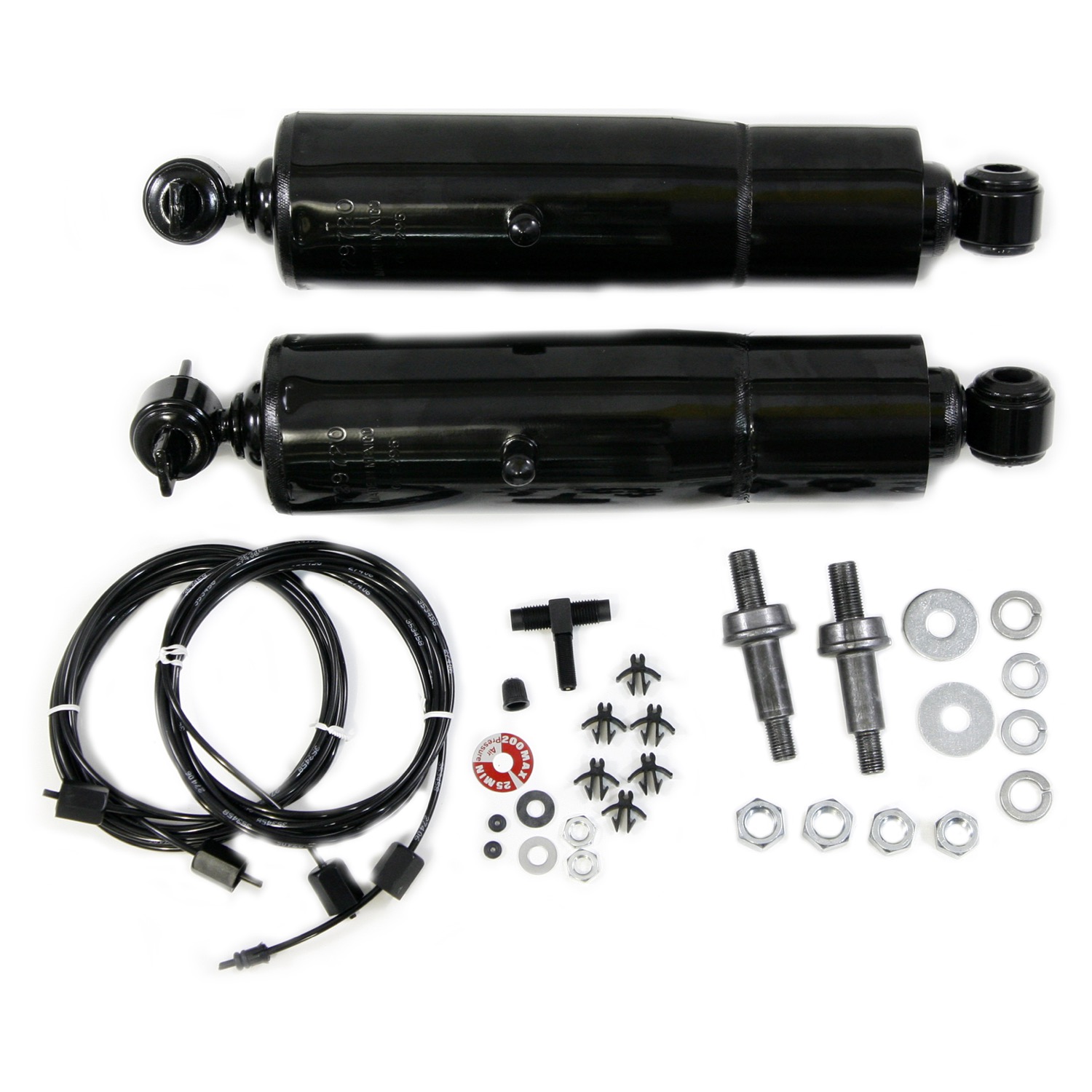

Package Contents	2 Shocks, 2 Nuts, 2 Clamps, 2 O-ring Packing, 1 Cap, 1 Valve Core, 6 Clips, 1 Washers, 1 Seal, 2 Tube assy, 8 Nuts, 12 Washers, 4 Bolts
Automotive Mounting Codes	Click here to download
